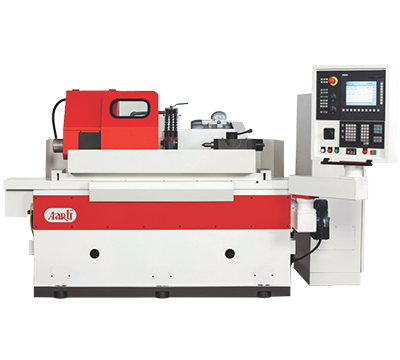

CYLINDRICAL GRINDER MACHINE

  • The CNC external grinding Machine has expressly designed to achieve accuracy with easy to use and affordable price to shape the outside of an object. The CNC external grinding Machine can work on a variety of shapes and offer solutions to satisfy all users' needs for a wide variety of applications in production environments.

      FEATURES :

    • Major structure are manufactured by high grade casting heavily ribbed.

    • X and Z precision manual scraped V and flat guide ways coated.

    • Siemens 802D GN2 Axis servo Controller with standard built-in cycles.

    • Pitch error & back lash compensation.

    TECHNICAL SPECIFICATIONS :

    Specification Units 600mm 1000mm
    CAPACITY
    MAX. Grinding Diameter mm 150 150
    Max. Grinding Length mm 600 1000
    Max. Weight Of the Job Kg 50 70
    WORK HEAD
    Center Height mm 165 165
    Spindle Nose MT 4 4
    Spindle Speed (Infinity Variable) rpm 30-600 30-600
    Spindle Motor Power H.P 1 1
    Max. Swivel DEGREE 45 45
    GRINDIND SPINDLE
    Cartridge Type Grinding Spindle RPM 1750 1750
    Peripheral (Surface) Speed m/Sec 30 30
    Grinding Wheel Size (OD x width x ID) mm 400 × 50 × 127 400 x 50 x 127
    Spindle Motor Power KW/H.P 3.75/5 3.75/5
    AXIS
    X Axis Stroke mm 175 175
    Z Axis Stroke mm 750 1150
    Rapid Feed Rate For X & Z Axis m/min 15 15
    Minimum Resolution mm 0.001 0.001
    Axis Servo Motor Power X/Z Nm 6/8 6/11
    ELECTRICAL
    Total Connected Load H.P H.P 15 15
    Supply Voltage 3 PH 415 V AC, 50 HZ 3 PH 415 V AC, 50 HZ
    FLOOR PLAN
    Space Area (L x W Approx) mm 3000 x 2000 4500 x 2000
    Weight of Machine Kg. 3250 3250
