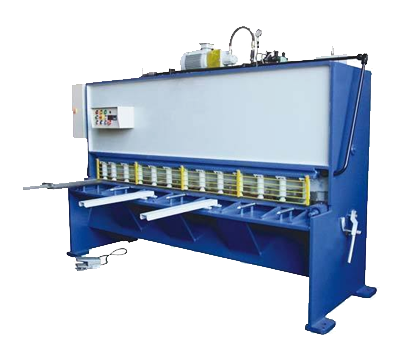

Hydraulic Shearing Machine

  • Steel Body Hydraulic Shearing Machine.

    • Frame :

      • The Frame is rigidly constructed from Solid steel plates with safeguards, It’s interlocked design provides support to the bed directly on the frame to avoid weak sections at load supports.

    • Knives :

      • Each machine is provided with high quality single segment, (HcHcr) knives for enhanced tool life. The knive blades are four edged.

    • Mechanical Back Gauge :

      • Mechanical Back Gauge is operated by Rack Pinion arrangement for easy and accurate cutting operations. The Front gauge moves ona “T” slot provided on the table.

    Technical Specifications :

    Model Shearing
    Length
    mm
    Sh. Thickness
    M.S. S.S.
    Mini.
    Rake
    Angle    		 Maxi.
    Rake
    Angle    		 Mini.
    Rake
    Angle    		 Maxi.
    Rake
    Angle
    		Std
    Rake
    Angle    		 Rake
    Angle
    Range    		 Stroke
    /minute
    At Min.
    & Rake
    Angle    		 Hold
    Downs    		 Motor
    H.P.    		 Packing Dimension
    mm
    ( L x W x H )    		 Approx.
    Weight
    JHVR – 1 1525 3 4 2 3 1° 15 0.5-2° 26-13 9 5 2250x1850x2050 2600
    JHVR – 2 2030 3 4 2 3 1° 15 0.5-2° 24-12 11 5 2700x1850x2050 3200
    JHVR – 3 2540 3 4 2 3 1° 15 0.5-2° 28-13 13 5 3200x1850x1950 3500
    JHVR – 4 3100 3 4 2 3 1° 15 0.5-2° 26-9 15 5 3700x1850x1950 4000
    JHVR – 5 4000 3 4 2 3 1° 15 0.5-2° 12-6 20 7.5 4500x2250x2400 4500
    JHVR – 6 1525 4 6 3 4 1° 37 0.5-3° 30-15 8 7.5 2250x1850x2050 3000
    JHVR – 7 2030 4 6 3 4 1° 37 0.5-3° 28-13 11 7.5 2750x1850x2400 3500
    JHVR – 8 2540 4 6 3 4 1° 37 0.5-3° 30-8 13 7.5 3300x2250x2400 4600
    JHVR – 9 3100 4 6 3 4 1° 37 0.5-3° 28-8 15 10 3700x2250x2400 5800
    JHVR – 10 4000 4 6 3 4 1° 45 0.5-3° 22-8 20 10 4500x2250x2400 7800
    JHVR – 11 1525 6 8 4 6 1° 45 0.5-3° 24-8 8 10 2250x1900x2100 3800
    JHVR – 12 2030 6 8 4 6 1° 45 0.5-3° 22-7 11 10 2750x1900x2100 4100
    JHVR – 13 2540 6 8 4 6 1° 45 0.5-3° 28-8 13 15 3300x2350x2600 5700
    JHVR – 14 3100 6 8 4 6 1° 45 0.5-3° 24-6 15 15 3800x2350x2600 7000
    JHVR – 15 4000 6 8 4 6 1° 45 0.5-3° 24-6 20 20 4800x2350x2600 8500
    JHVR – 16 1525 8 10 6 8 2° 0.5-3° 22-10 8 15 2250x2050x2200 4200
    JHVR – 17 2030 8 10 6 8 2° 0.5-3° 18-8 11 15 2750x2050x220 5200
    JHVR – 18 2540 8 10 6 8 2° 0.5-3° 24-8 13 20 3300x2350x2600 7200
    JHVR – 19 3100 8 10 6 8 2° 0.5-3° 20-6 15 20 3800xx2350x2600 8600
    JHVR – 20 4000 8 10 6 8 2° 0.5-3° 20-8 20 30 4800x2350x2600 12000
    JHVR – 21 1525 10 13 8 10 2° 0.5-3° 20-10 8 15 2250x2050x2300 5000
    JHVR – 22 2030 10 13 8 10 2° 0.5-3° 18-8 11 15 2750x2050x2300 5800
    JHVR – 23 2540 10 13 8 10 2° 0.5-3° 24-8 13 20 3300x2500x2800 7300
    JHVR – 24 3100 10 13 8 10 2° 0.5-3° 20-6 15 20 3800x2500x2600 10800
    JHVR – 25 4000 10 13 8 10 2° 0.5-3° 18-6 20 30 4800x2500x2600 13500
    JHVR – 26 2030 13 16 10 13 2° 1-3° 13-5 11 20 2750x2200x2500 7000
    JHVR – 27 2540 13 16 10 13 2° 1-3° 15-10 13 25 3350x2600x2800 8000
    JHVR – 28 3100 13 16 10 13 2° 1-3° 12-6 16 25 3800x2600x2800 11500
    JHVR – 29 4000 13 16 10 13 2° 1-3° 9-4 20 30 4850x2200x2800 15000
    JHVR – 30 2030 16 20 13 16 2° 1-3° 13-7 11 25 2750x2200x2600 11500
    JHVR – 31 2540 16 20 13 16 2° 1-3° 15-8 13 30 3500x2600x2900 14000
    JHVR – 32 3100 16 20 13 16 2° 1-3° 12-6 16 30 4000x2600x2900 15500
    JHVR – 33 4000 16 20 13 16 2° 1-3° 9-4 20 30 5100x2750x2900 18000
    JHVR – 34 2030 20 25 16 20 2° 1-3° 16-8 11 40 2900x2500x2600 16000
    JHVR – 35 2540 20 25 16 20 2° 1-3° 15-8 13 40 3500x2750x3000 17000
    JHVR – 36 3100 20 25 16 20 2° 1-3° 12-6 16 40 4000x2750x3000 18000
    JHVR – 37 4000 20 25 16 20 2° 1-3° 9-4 20 50 5100x2800x3000 22000
